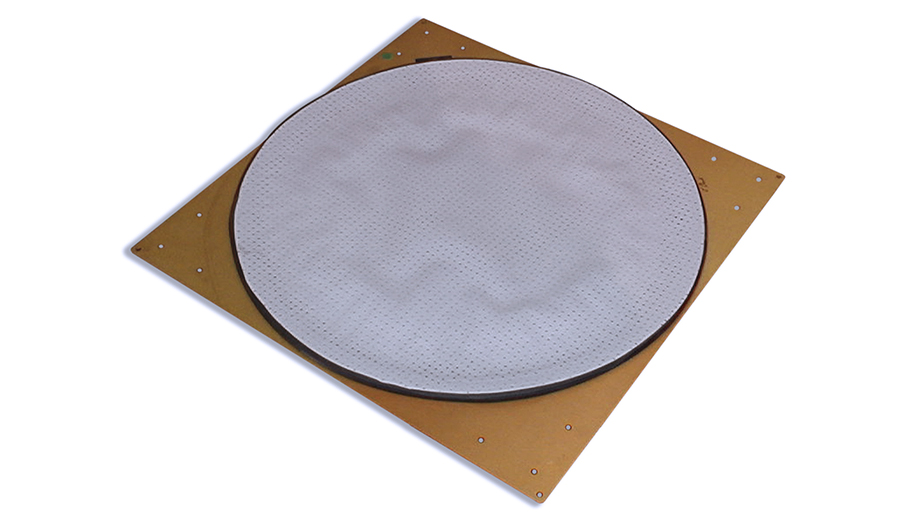

  • Gapmasters’ special perforated membrane meters airflow to optimize movement of heavy loads across gaps in floors
  • Greater weight distribution eliminates floor surface damage and the need for specially reinforced floors

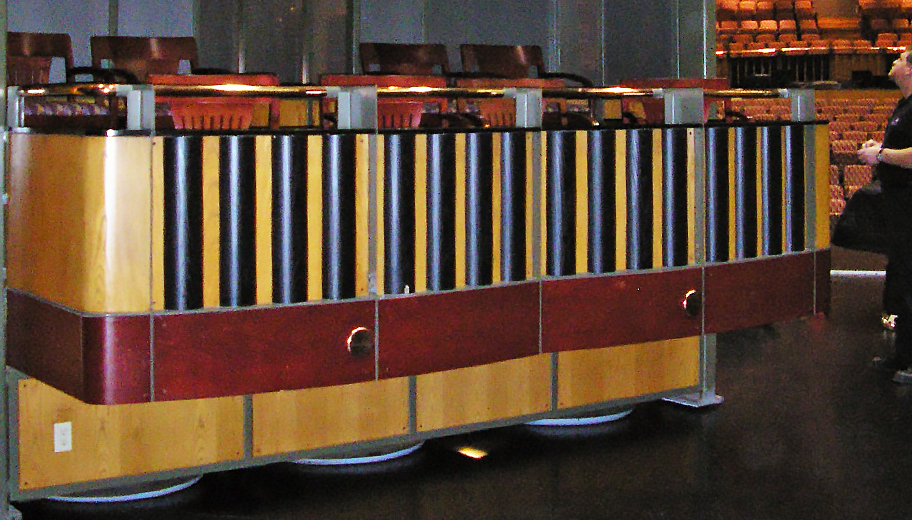

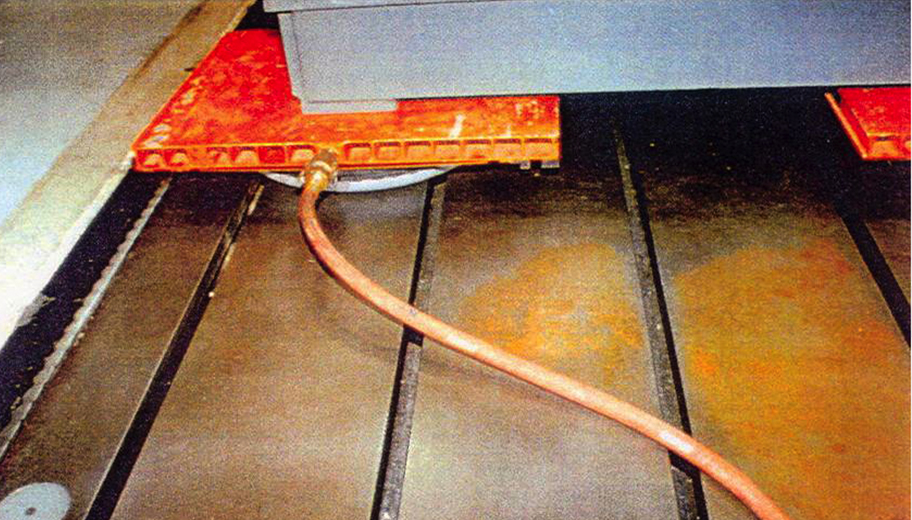

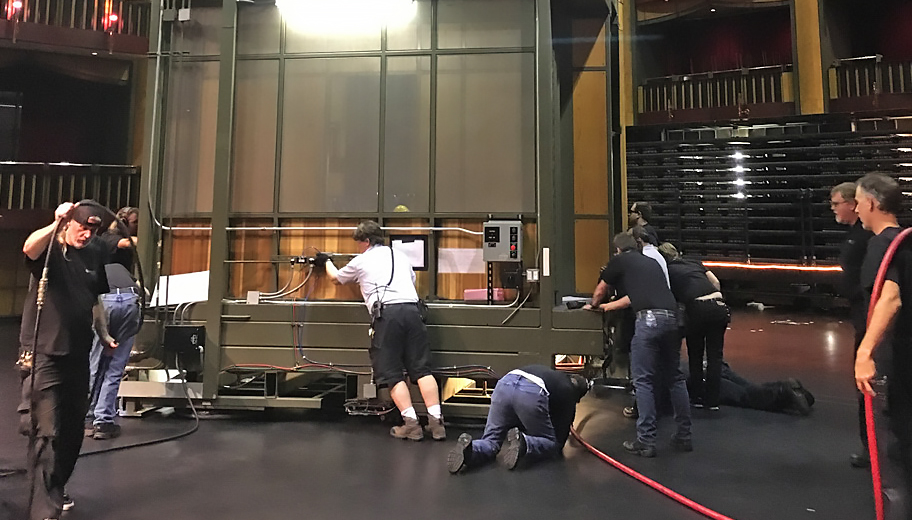

  • Typically used in clean rooms, semiconductor assembly, machine tool beds and theatre stages
  • Perfectly suited for raised, mezzanine and wood flooring
  • AeroGo Gapmasters are ASME B30.1 Certified
gapmaster certified badge694x694

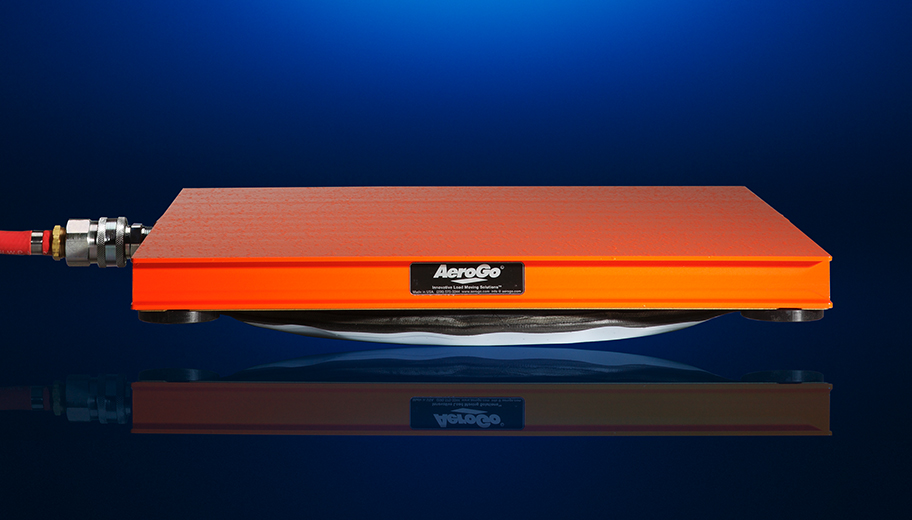

Gapmaster Aero-Caster

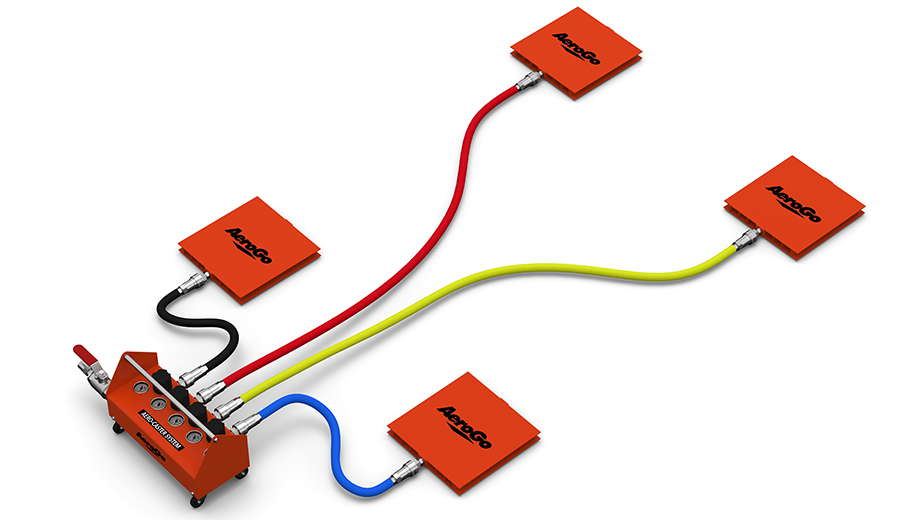

AeroGo Gapmaster Air Caster Systems utilize compressed air to actually float heavy loads on a near-frictionless film of airl.

Download the PDF

Specifications

Standard

ModelSystem Capacity (lbs)Rated Pressure (psig)System Air Flow 1/4 Load (SCFM)System Air Flow Full Load (SCFM)Effective Lift (in.)Air Caster Element Nominal Dimensions
L x W x H (in.)
4K12GL4,800153660112-1/8 x 12-1/8 x 2
4K15GL8,0001544721-3/815-1/8 x 15-1/8 x 2
4K21GL16,0001548801-7/821-1/8 x 21-1/8 x 2
4K15GHDL18,40035561201-3/815-1/8 x 15-1/8 x 2
4K27GL28,0001556100227-1/8 x 27-1/8 x 2-7/16
4K21GHDL32,00030641401-5/821-1/8 x 21-1/8 x 2
4K36GL48,00015681202-1/436-1/8 x 36-1/8 x 2-11/16
4K27GHD66,00035801801-3/427-1/8 x 27-1/8 x 2-7/16
4K36GHD96,00030104240236-1/8 x 36-1/8 x 2-11/16

Metric

ModelSystem Capacity (kg)Rated Pressure (kg/cm2)System Air Flow 1/4 Load (L/sec)System Air Flow Full Load (L/sec)Effective Lift (mm)Air Caster Element Nominal Dimensions
L x W x H (mm)
4K12GL2,1761.116.82825308 x 308 x 51
4K15GL3,6281.120.83435384 x 384 x 51
4K21GL7,2561.122.83848537 x 537 x 51
4K15GHDL8,3442.526.45735384 x 384 x 51
4K27GL12,7001.126.447.251689 x 689 x 62
4K21GHDL14,5122.130.46641537 x 537 x 51
4K36GL21,7681.132757918 x 918 x 68
4K27GHD29,9322.537.68544689 x 689 x 62
4K36GHD43,5362.149.211351918 x 918 x 68
